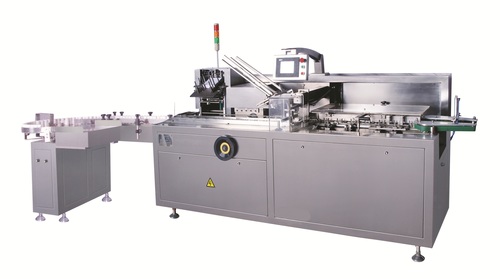

JDZ-100 P Automatic Carton Machine
Use:
This carton packing machine can pack bottle which is round or flat, it also can pack eye drop bottle and so on.
Instruction
Fully automatic and multi-function cartoner Machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain
Feature
Main technical parameters
Encasing speed | 30-120 cartons/min | |
Carton | Quality requirement | 250-350g/m2 (base on carton size) |
Dimension range (LWH) | (65-155)mm(30-85)mm(15-50)mm | |
Leaflet | Unfolded leaflet specification(LW) | (80-250)mm(90-170)mm |
Fold range | (1-4) fold | |
Quality | 60-70 g/m2 | |
Compressed air | Working pressure | 0.6mpa |
Air consumption | 120-160L/min | |
Power | 220V/50Hz | |
Motor power | 1.10kw | |
Machine dimension(LWH) | 4200mm1140mm1550mm | |
Machine weight | 1600kg |
